Schindelhauer Gustav Nexus VIII
City all-rounder
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
City all-rounder
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
City all-rounder
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
THE CITY ALL-ROUNDER
Practical, functional and yet reduced in appearance - Gustav is an all-rounder in urban traffic and offers comfort as well as a functional equipment package for everyday commuting. Whether for commuting to work, shopping, as a family bike or for longer tours - Gustav is equipped for many uses with an 8-speed transmission.
Award-winning Design
Awarded by renowned design experts and decision-makers from the bicycle industry, Gustav stands for the well thought-out concept of the functional, aesthetically sophisticated everyday bicycle. In the course of the relaxed frame geometry and seating position as well as comfortable tyres, short distances in the city can be managed just as comfortably as extended tours. Another highlight is the frame-mounted front rack with VarioStrap system, which keeps the load securely in place.
Comfortable. Relaxed. Low maintenance.
Enough clearance for large-volume tyres, sufficient loading height for the front carrier and a relaxed riding position were the goals when developing the geometry for Gustav. The low bottom bracket and long head tube achieved just that. Even cobblestone paths become a new favourite shortcut with this riding comfort.
Comfortable on any terrain.

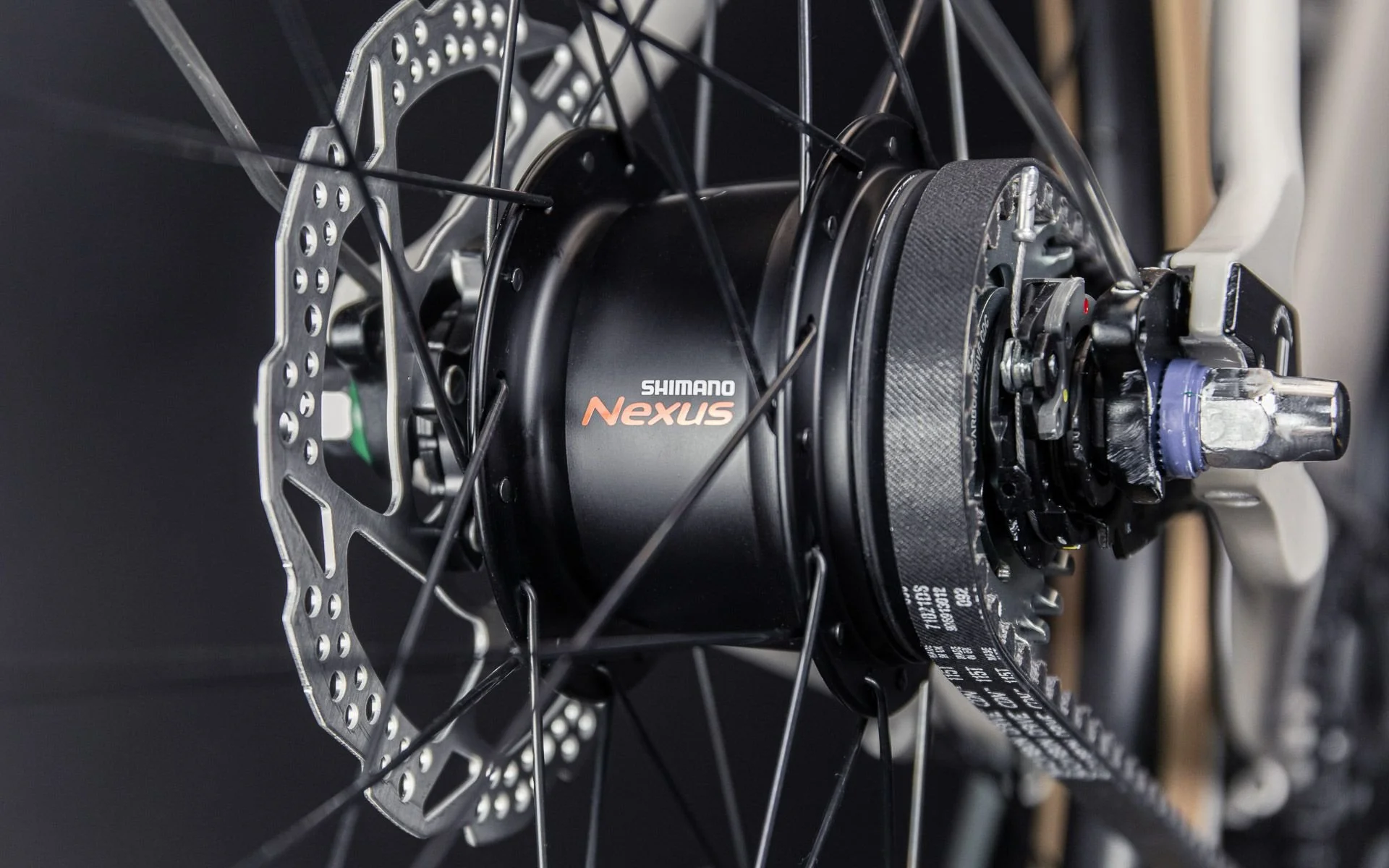

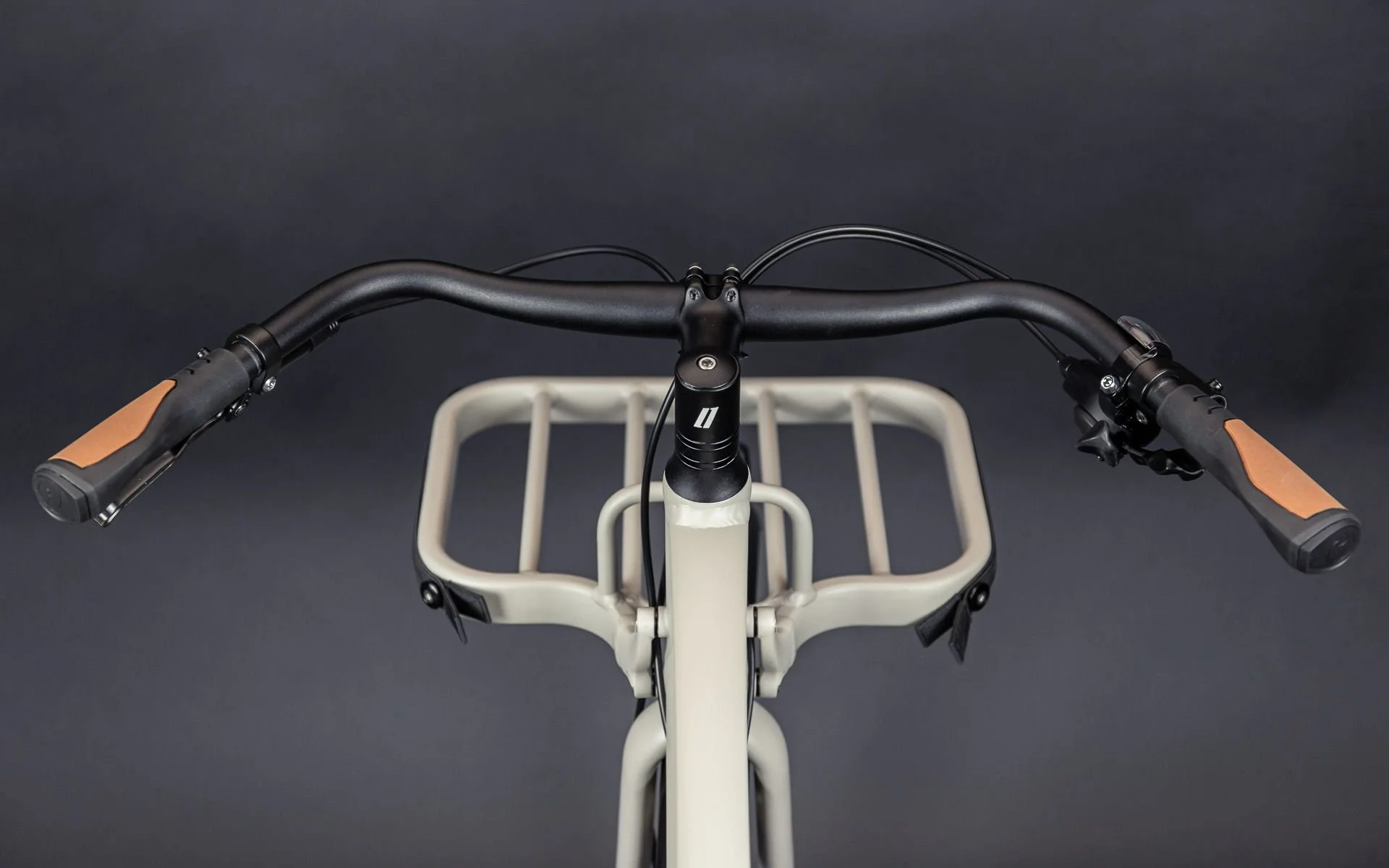

Whether extended tours with climbs or speedy tailwind passages, the Shimano Nexus 8-speed transmission offers enough leeway with a spread of 307%. Shift and brake levers are optimally integrated in the tidy cockpit and easy to reach. The high-quality rubber grips ensure optimum grip even on uneven terrain.
See and be seen.

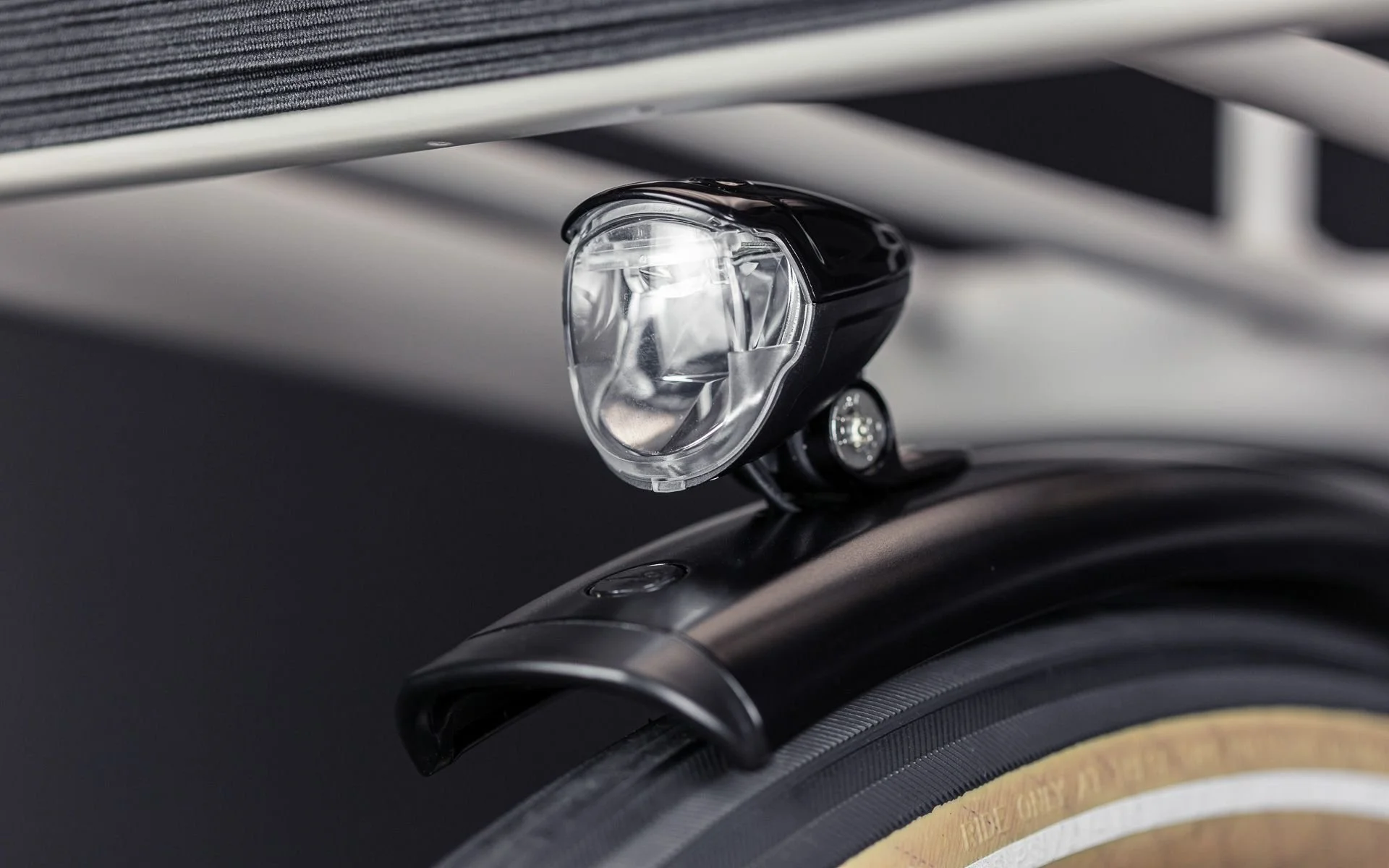

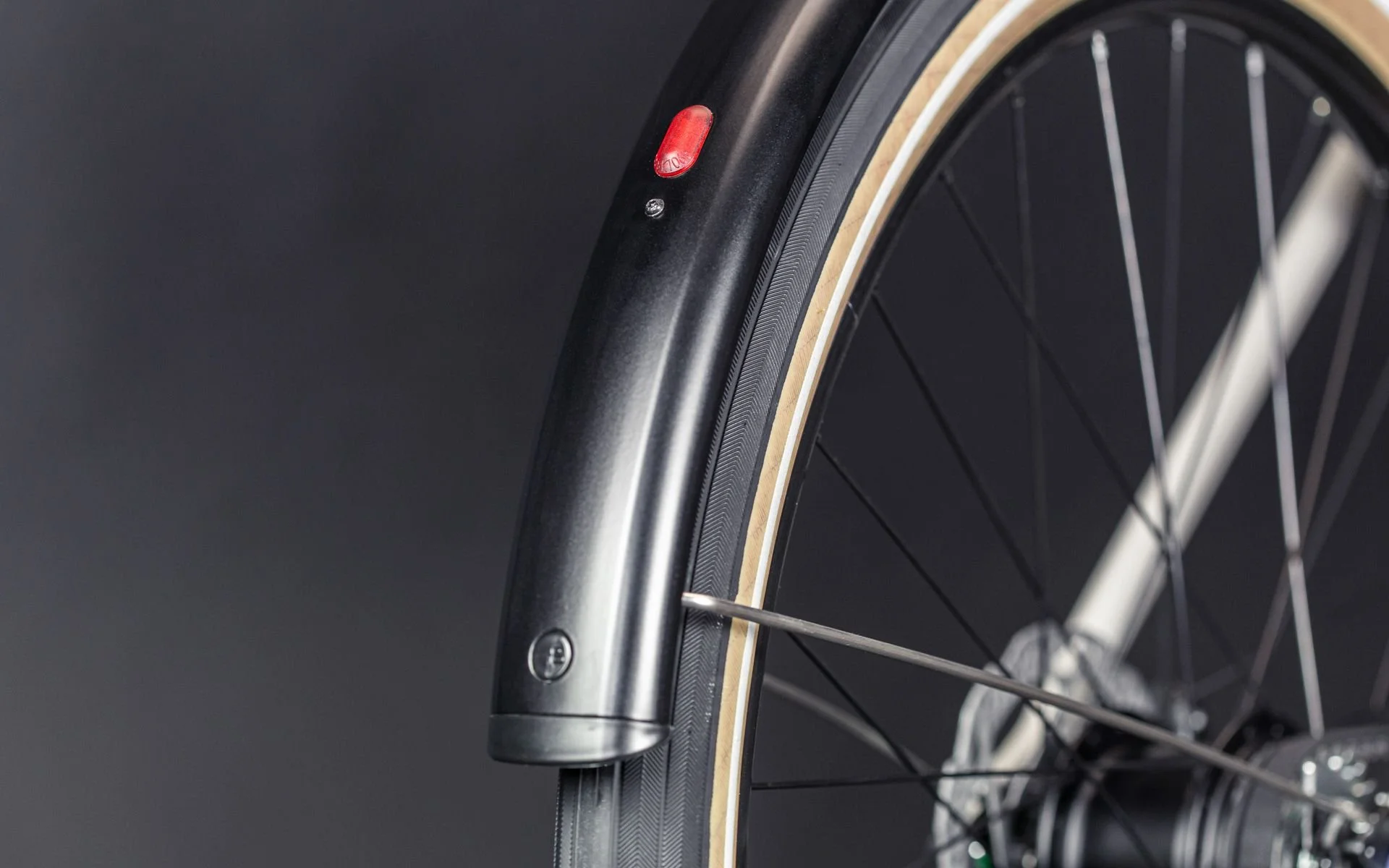

The Busch und Müller headlight ensures good visibility at night, while the Curana rear light is inconspicuously integrated into the rear aluminium mudguard. Thanks to the hub dynamo, you don't need to worry about the power supply - a standlight function is also on board.
KEY FEATURES
BRAKES: Shimano – MT200 disc brakes (hydraulic) 160 mm
LIGHTING: Busch und Müller Lumotec Eyc N Plus front and ILU-JR rear

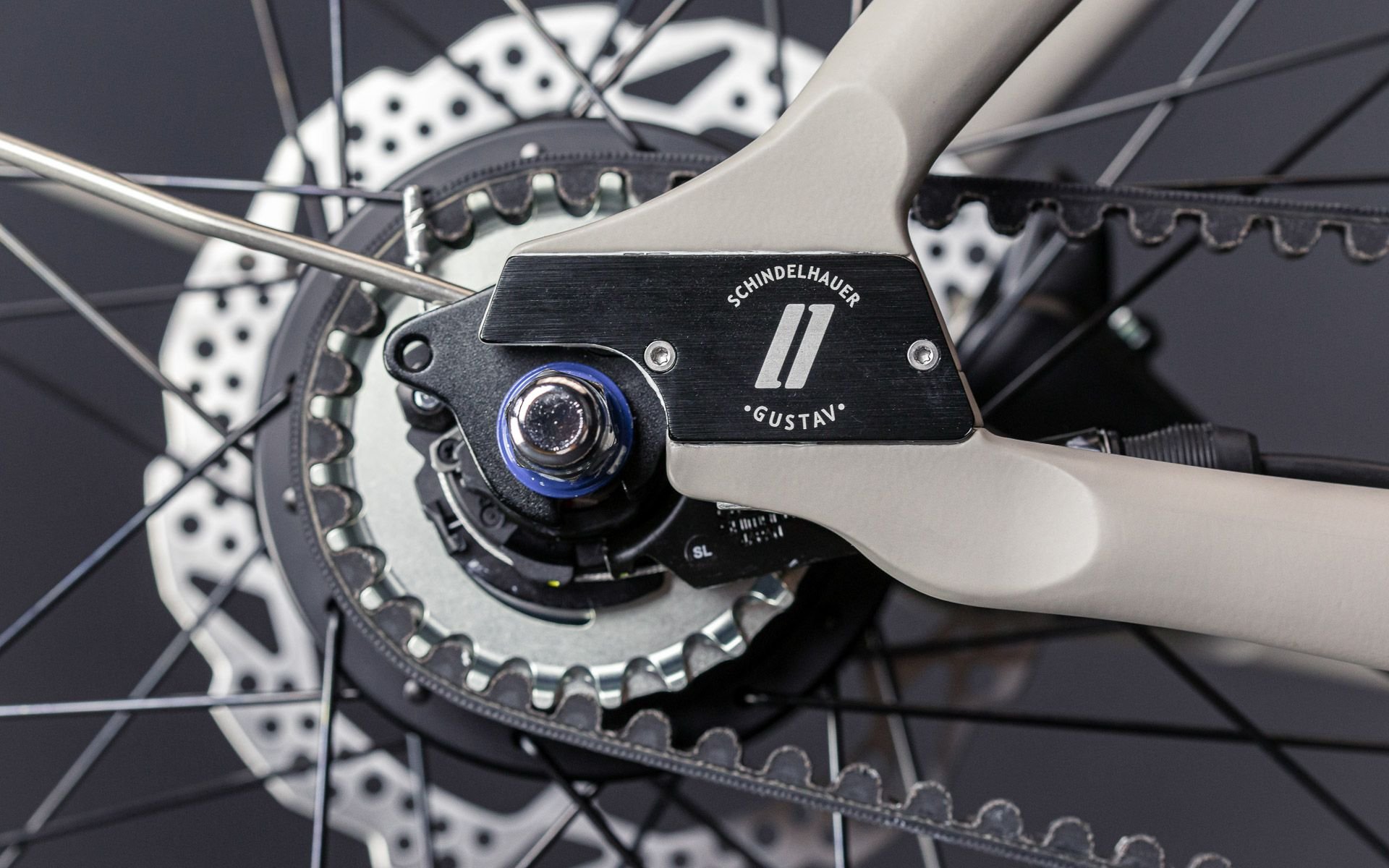

FRAME: Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded
GEAR SHIFT: Shimano - Nexus 8-speed
CARGO: Frame-mounted front rack
POWER TRANSMISSION: Gates Carbon Drive - CDN, front 46T, rear 24T, belt 115T

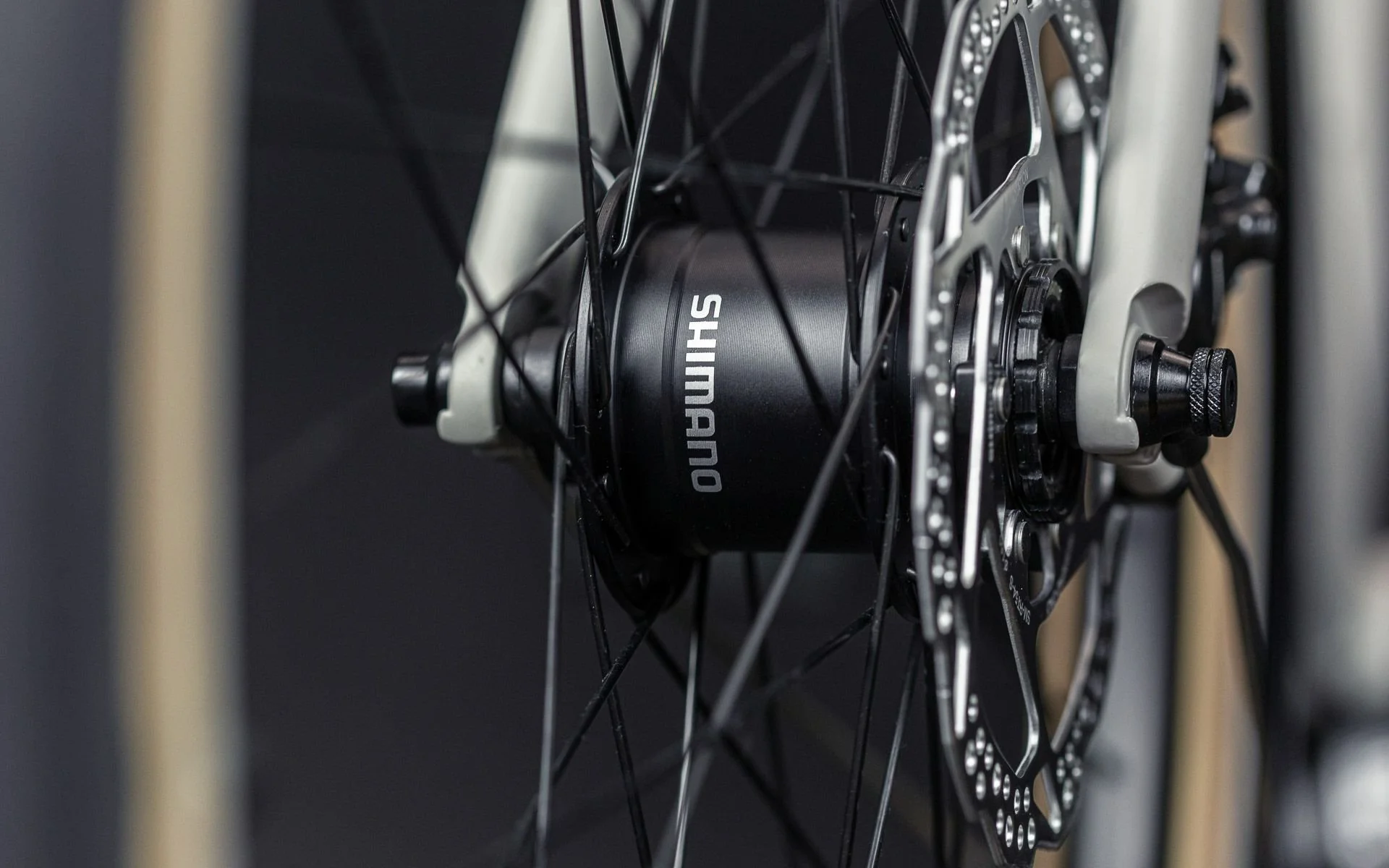

WHEELS: Shimano - DH-T4050 hub dynamo, Shimano Nexus 8-speed, Alexrims - DP23 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced
TYRES: WTB - Horizon 47 - 584, with reflex stripes
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| S (45) | 168-177 | 77-82 |
| M (50) | 177-186 | 83-88 |
| L (55) | 186-200 | 89-96 |
| Frame Size | 45 (S) | 50 (M) | 55 (L) |
|---|---|---|---|
| A Size C-T (mm) | 450 | 500 | 550 |
| B Top Tube Horiz. (mm) | 590 | 630 | 644 |
| C Head Tube (mm) | 190 | 200 | 230 |
| D Chain Stay (mm) | 438 | 438 | 438 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 73 | 73 | 73 |
| G Wheelbase (mm) | 1063 | 1104 | 1118 |
| H Standover Height (mm) | 808 | 836 | 873 |
| I Reach | 409 | 447 | 453 |
| J Stack | 615 | 624 | 653 |
| Headset | 1 1/8 | 1 1/8 | 1 1/8 |
| Seatpost Size (mm) | 30.9 | 30.9 | 30.9 |
| Technical Specification | Details |
|---|---|
| Grips | Schindelhauer |
| Fork | Curved aluminium fork for disc brake mount |
| Headset | Tange Seiki - integrated, 1 1/8 |
| Max. Total Weight | 130 kg (bike + rider + luggage) |
| Seatpost | Schindelhauer |
| Saddle | Schindelhauer |
| Brakes | Shimano – MT200 disc brakes (hydraulic) 160 mm |
| Stem | Schindelhauer |
| Mudguards | Curana – Apollo (extrusion profile mudguards) |
| Handlebar | Schindelhauer - Jane, Aluminium |
| Lighting | Busch und Müller Lumotec Eyc N Plus front and ILU jr. rear |
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, points for frame mounted front rack, smooth welded |
| Gear Shift | Shimano - Nexus 8-speed |
| Crank Set | Gates Carbon Drive - S150 |
| Pannier Rack | Schindelhauer - aluminium, frame mounted, with VarioStraps |
| Bottom Bracket | THUN - Zumba |
| Additional Features | Pletscher Twin stand Mounting of bottle cage or lock onto the frame is possible Attaching a child seat onto the seat tube is possible Installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information |
| Wheels | Shimano - DH-T4050 hub dynamo, Shimano Nexus 8-speed, Alexrims - DP23 27,5“ rims, SAPIM spokes, 3-cross and 2-cross laced |
| Weight | 13.0 kg |
| Pedals | VP - Nylon, with grip tape |
| Tyres | WTB - Horizon 47 - 584, with reflex stripes |
| Power Transmission | Gates Carbon Drive - CDN, front 46T, rear 24T, belt 115T |
