Schindelhauer Lotte Alfine 8/11 Speed
CLASSIC CHARM
For the first time, Lotte is now available as a limited edition in graphite black with integrated dynamo-powered lighting system from LightSKIN.
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
CLASSIC CHARM
For the first time, Lotte is now available as a limited edition in graphite black with integrated dynamo-powered lighting system from LightSKIN.
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
CLASSIC CHARM
For the first time, Lotte is now available as a limited edition in graphite black with integrated dynamo-powered lighting system from LightSKIN.
If you have any questions, special circumstances or can’t find the Schindelhauer product you are looking for please don’t hesitate to reach out to us at info@accessimpact.co.uk
Your new bike ships from Schindelhauer in Germany. In order to ensure the quality of your riding experience we require that all Schindelhauer bikes be shipped to one of our Click & Collect locations. For a modest flat rate of £100 your new bike will be shipped to a service location and professionally assembled for you. Please remember to make the selection of your Click & Collect location preference by adding it to your order below.
Any accessories ordered at the same time will be shipped separately.
Lovely Lotte combines a comfy, enjoyable ride with a sport feel. Weighing in at only 10.2 kg and equipped with Shimano Alfine 8-/11-speed hub gears, you are sure to get through the city in a relaxed state of mind. For the first time, Lotte is now available as a limited edition in graphite black with integrated dynamo-powered lighting system from LightSKIN.
Comfy sport feel
Lotte strives to match the sportiness of her brother Ludwig, while at the same time focusing on relaxed everyday riding. The Shimano Alfine hub gears contribute to this, as does a more comfortable frame geometry thanks to a lowered top tube, higher head tube and lower bottom bracket. Lights and mudguards can be easily retrofitted if necessary - selected components integrate perfectly to maintain the reduced design language and typical Schindelhauer character.
Peace of mind
Instead of a conventional chain, the maintenance-free Gates Carbon Drive CDX CenterTrack belt drive ensures a light, silent and fast ride. For extended tours with climbs or fast tailwind passages, the Shimano Alfine 8-/11-speed transmission is a perfect match.

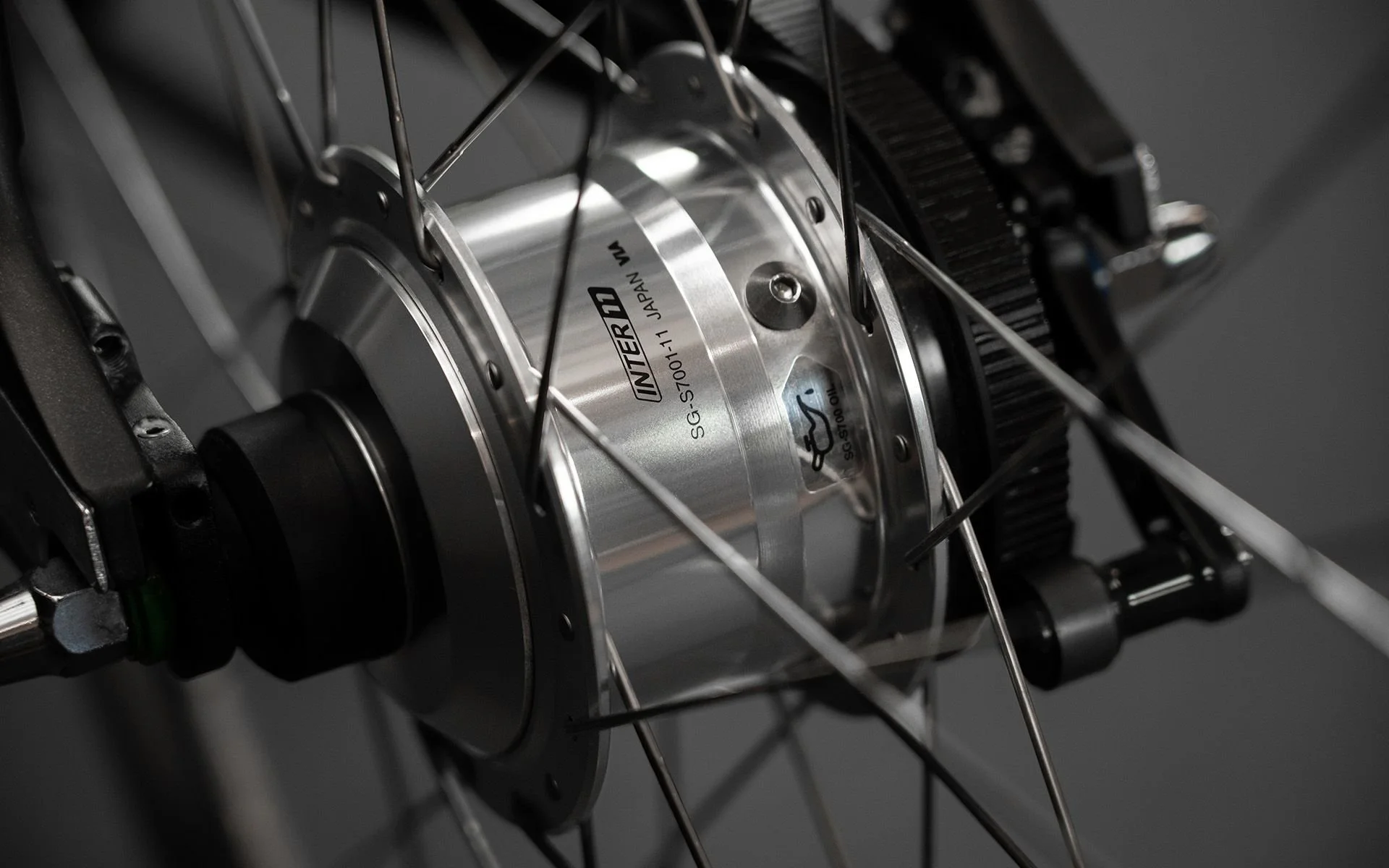

Shimano Alfine 8-/11-gear hub
With a spread of 307% for the 8-speed hub or 409% for the 11-speed hub, it offers enough leeway for any terrain. The pawl-free freewheel is super-quiet and an ideal complement to the silent belt drive.
Alfine components
The hollow axle and external bearings work together to achieve the essential stiffness that the belt demands, while a fixed clamp collar gives a precise belt line to ensure a highly durable belt – at the same time, as a visual highlight, it decisively shapes the character of the bike.
Gates Carbon Drive
Since day one, Schindelhauer has been using the superior belt drive from Gates, which consists of embedded carbon fibres. All bikes are specially designed for the belt drive in order to take advantage of all the benefits.
Zero maintenance
Oiling, greasing and rusting are a thing of the past.
Highly efficient
With a higher wattage, the efficiency is higher compared to the chain.
Long life span
The Gates Carbon Drive lasts about 3-4 times longer than a chain.
Stay clean
Due to the lack of oil, it keeps your trousers away from dirt.
Super quiet
No chain - No more chain running noises.
Lightweight
The Gates Carbon Drive weighs 20% less than a classic chain.
Seamlessly integrated technologies.
Lotte is designed from the ground up for the Gates Carbon Drive to make the most of all the advantages of the drive system. Innovative technologies such as the Schindelhauer belt port and the slider-belt-tensioning-system are seamlessly integrated to consistently maintain the purist design.
Aluminium frame
Stable, robust and yet a true lightweight - the frame is made of high-quality 6061 aluminium. The smoothed weld seams using the "flat-welding" process are a visual highlight.
Patented Belt Port
The patented Belt Port, an almost invisible opening at the dropout, makes it very easy to change the belt drive.
LightSKIN LED handlebar (Graphite Black Edition)
With a brightness of 150 lumens, it is the world's smallest lens that meets the high requirements of the StVZO. Thanks to good heat dissipation, it has a long life span.

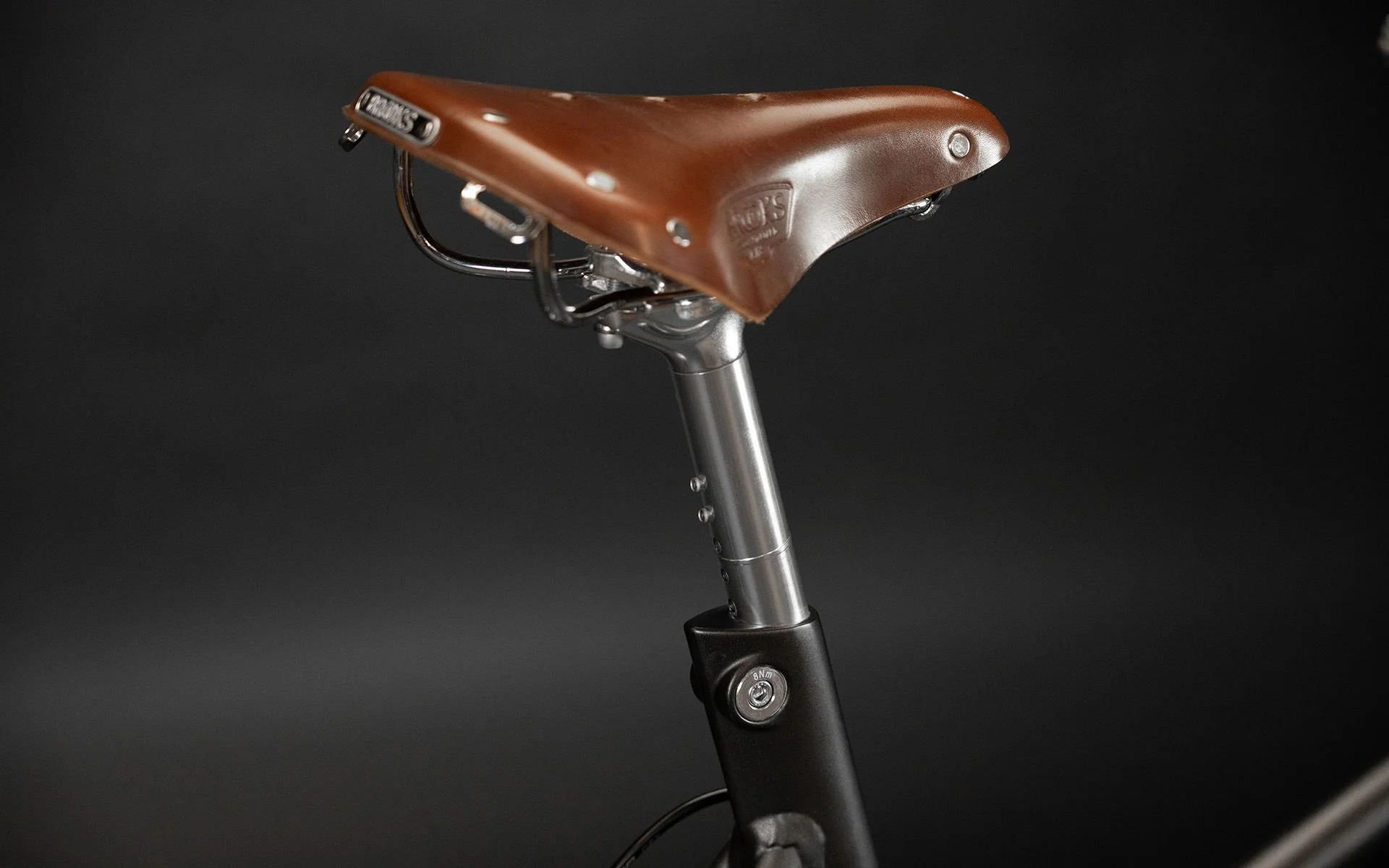

LightSKIN LED seat post (Graphite Black Edition)
Five LEDs, recessed in the seat post, ensure optimum safety in road traffic from all angles.
Hub dynamo (Graphite Black Edition)
Shutter Precision – inconspicuously integrated into the front wheel hub.
Sporty-classic cockpit
High-quality leather features and silver-polished components reveal the clear character traits: Lotte embodies elegant sportiness. The clean cockpit seamlessly integrates all components and offers agile handling.

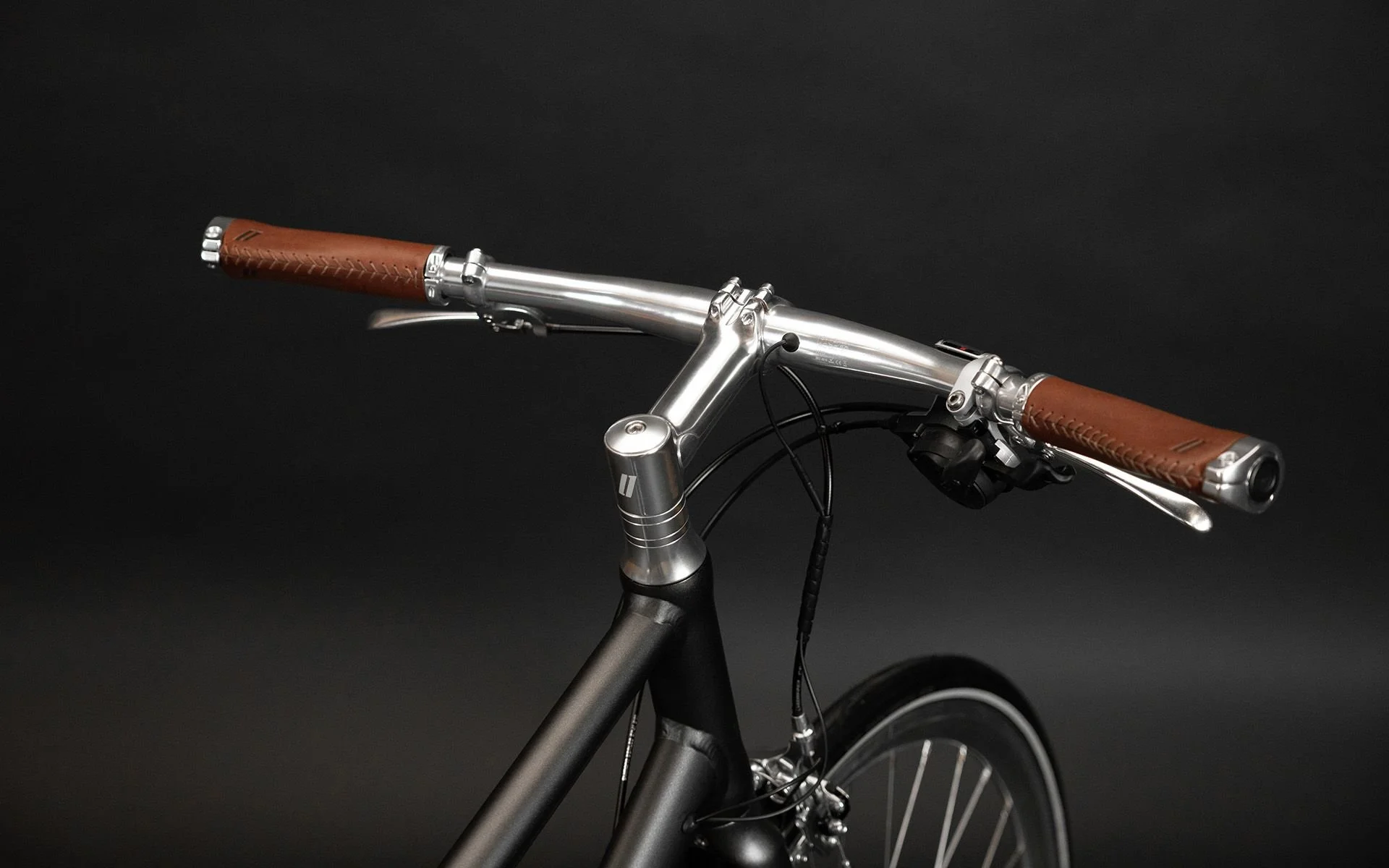

Schindelhauer handlebar Moon
The Schindelhauer Moon handlebars are ergonomically designed for a comfortable grip and an upright cycling position. The stylish sweep of the bar ends, which curve slightly backwards (18°), mean you’ll enjoy casual touring all the more.
Schindelhauer stem
You’ll love the clean and neat appearance achieved by transferring the segment system from our seat post clamp. The stem can be mounted to angle either upward or downward (+/- 7° rise).
More Highlights
Tektro brakes
Reliable braking performance
Brooks B17 S ladies leather saddle
Made in Great Britain.
Schindelhauer ergo grips
Relieve tension and make every single ride a pure delight.
Continental Contact II tires
Puncture-proof and ideal for everyday riding.
Schindelhauer Urban Pedal
CNC-machined
Optional upgrades
mudguards, pannier rack, light system, kick stand
| Frame Size | Body Height (cm) | Inseam Length (cm) |
|---|---|---|
| S (50) | 164-178 | 73-77 |
| M (53) | 170-185 | 78-82 |
| L (56) | 176-191 | 83-86 |
| Frame Size | 50 (S) | 53 (M) | 56 (L) |
|---|---|---|---|
| A Size C-T (mm) | 500 | 530 | 560 |
| B Top Tube Horiz. (mm) | 560 | 570 | 580 |
| C Head Tube (mm) | 155 | 165 | 175 |
| D Chain Stay (mm) | 416 | 416 | 416 |
| E Head Tube Angle (°) | 72.5 | 72.5 | 72.5 |
| F Seat Tube Angle (°) | 73 | 73 | 72.5 |
| G Wheelbase (mm) | 1014 | 1024 | 1029 |
| H Standover Height (mm) | 703 | 717 | 730 |
| I Reach | 397 | 405 | 407 |
| J Stack | 554 | 564 | 573 |
| Headset | 1 1/8 | 1 1/8 | 1 1/8 |
| Seatpost Size (mm) | 27.2 | 27.2 | 27.2 |
| Component | Specification |
|---|---|
| Grips | Schindelhauer - Ergo leather grips |
| Fork | Curved aluminium fork |
| Headset | Tange Seiki - Integrated |
| Max. Total Weight | 120 kg (bike + rider + luggage) |
| Seatpost | Schindelhauer |
| Saddle | Brooks - B17 S Lady |
| Brakes | Tektro - R539, Tektro - FL750 |
| Stem | Schindelhauer |
| Mudguards | Mudguard mounting possible |
| Handlebar | Schindelhauer - Aluminium moon bar / LightSKIN LED (Graphite Black Edition) |
| Lighting | LightSKIN LED handlebar (Graphite Black Edition), LightSKIN LED seat post (Graphite Black Edition), optional for all other colours |
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, internal cable routing, smooth welded |
| Gear Shift | Shimano - Alfine 8-speed internal gear hub |
| Crank Set | Shimano - Alfine Hollowtech II |
| Pannier Rack | Front- and rear pannier rack mounting possible |
| Bottom Bracket | BSA, Shimano - Alfine Hollowtech II |
| Additional Features | Side stand mounting possible, installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information |
| Wheels | Schindelhauer - High flange front hub / Shutter Presision – PL-8 hub dynamo (Graphite Black Edition), Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CX30 rims, Sapim - Race spokes, radial and 2-cross laced |
| Weight | 10.2 kg |
| Pedals | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| Tyres | Continental – Contact Urban with reflective stripes 28-622 |
| Power Transmission | Gates Carbon Drive - CDX,
|
